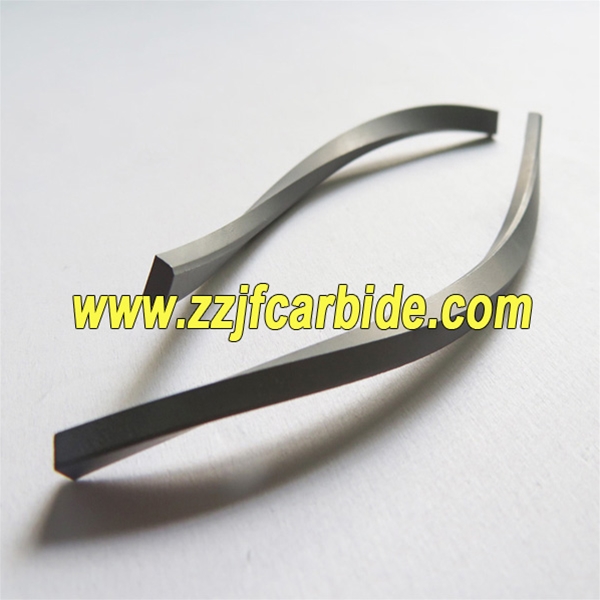

Tungsten Carbide Spiral Strips
Hardmetal Brazed Helical Bars
Product DescriptionProduct AttributesPlace Of Origin: China
Company Type: Manufacturer
Grade: K05-K40,M10-M25, P10-P30
Certification: ISO9001:2015
Model Number: Standard & Customized
Trial Order: Accptable
Sample: Free Supply（Standard）
Direction: Right Hand or Left Hand
Delivery: 3-15days according to quantity
Length: 15-300mm
Milling Diameter: D7-D200mm
Packaging & DeliverySelling Units : Piece/Pieces Product DescriptionAs a Cemented Tungsten Carbide Specialist, our brazed Tungsten Carbide Helical Inserts are used and appreciated worldwide by manufacturers in cutting tools industries.
Brazed tungsten carbide Helical Inserts are produced by powder metallurgy that starts with thermal shaping process method to form a part. Ensuring more even structure, high overall density, fewer welded crack, good impact resistance and a long life.
This special type of brazed tungsten carbide helical inserts with different spiral angles are used in manufacturing finishing milling cutters. There are over a dozen different grades of Tungsten Carbide, enabling us to meet the specific application demands of our customers.Product Advantage
-We can control the fitting accuracy within 0.5mm.
-Standard sizes direct from stock, delivered fast.
-On demand: different helical angles and special lengths up to 300mm and diameter up to Ø180 mm
Product Standard
Item Code
Helical Angel
(Degree)
Mill Ød
Specification(MM)
L070838
7°
Ø8
1.0×2.3×38
L071345
Ø13
1.4×2.6×45
L071350
Ø13
1.4×2.6×50
L071655
Ø16
1.4×2.6×55
L082063
8°
Ø20
1.8×3.4×63
L082065
Ø20
1.8×3.4×65
L152828
15°
Ø28
1.8×3.4×28
L152868
Ø28
1.8×3.4×68
L251226
25o
Ø12
1.8×3×26
L251432
Ø14
2.2×3.3×32
L251838
Ø18
2.3×3.5×38
L251845
Ø18
2.3×3.5×45
L251853
Ø18
2.3×3.5×53
L252535
Ø25
3.0×6.0×35
L252545
Ø25
2.6×4.0×45
L252553
Ø25
2.6×4.0×53
L252565
Ø25
2.6×4.0×65
L302845
30o
Ø28
2.9×4.5×45
L302853
Ø28
2.9×4.5×53
L302863
Ø28
2.9×4.5×63
L302875
Ø28
2.9×4.5×75
L302883
Ø28
2.9×4.5×83
L3028100
Ø28
2.9×4.5×100
L303853
Ø38
3.1×5.0×53
L303863
Ø38
3.1×5.0×63
L303875
Ø38
3.1×5.0×75
L303883
Ø38
3.1×5.0×83
L3038100
Ø38
3.1×5.0×100
L305663
Ø56
3.1×5.6×63
L305675
Ø56
3.1×5.6×75
L305683
Ø56
3.1×5.6×83
L3056100
Ø56
3.1×5.6×100
Our specialists provide superior service including technical help like grade and specification selection.
For any further information please contact us today.(sales(at)zzjfcarbide.com)
