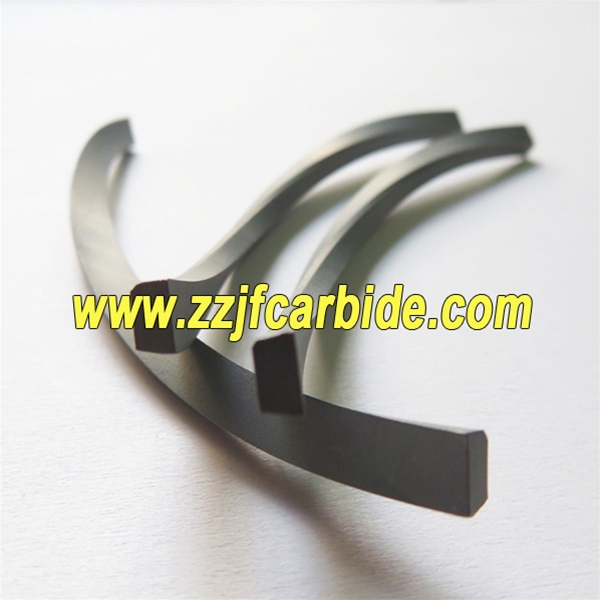

Tungsten Carbide Spiral Strips
Tungsten Carbide Helical Inserts For Brazed Milling Cutters
Product DescriptionProduct AttributesPlace Of Origin: China
Quality Certification: ISO9001:2015
Milling Diameter: D7-D200mm
Length: 15-300mm
Spiral Angle: 0°-45°
Material: WC+Co/Ni
Direction: Right Hand or Left Hand
Hardness: HRA87.5-92.5
Usage: For brazed milling cutters
Specification: Custom-made is available
Packaging & DeliverySelling Units : Piece/Pieces Product DescriptionAbout Our Company
Established in 2004, ZHUZHOU JINGFENG Carbide Tools CO.,LTD is dedicated to R&D, producing and marketing high quality products while providing competitive pricing and fast turnaround on standard and customized specail tools.
Initially, our business mainly focus on producing Tungsten Carbide Helical Inserts of products. After many years of research and testing, we have succeeded in producing helical bars carbide with 45 degree helix angle and length 300mm to manufacture finishing milling cutters. To this day, we continue to produce the variety of sizes and specifications, and have become a leader in this project, as well.Tungsten carbide Helical Inserts are produced by powder metallurgy that starts with thermal shaping process method to form a part. Ensuring more even structure, high overall density, fewer welded crack, good impact resistance and a long life.
We can control the fitting accuracy within 0.5mm. The various choice of carbide grades enables to find the suitable material for each customers application.
Our Standard Dimensions
Item Code
Helical Angel
(Degree)
Mill Ød
Specification(MM)
L070838
7°
Ø8
1.0×2.3×38
L071345
Ø13
1.4×2.6×45
L071350
Ø13
1.4×2.6×50
L071655
Ø16
1.4×2.6×55
L082063
8°
Ø20
1.8×3.4×63
L082065
Ø20
1.8×3.4×65
L152828
15°
Ø28
1.8×3.4×28
L152868
Ø28
1.8×3.4×68
L251226
25o
Ø12
1.8×3×26
L251432
Ø14
2.2×3.3×32
L251838
Ø18
2.3×3.5×38
L251845
Ø18
2.3×3.5×45
L251853
Ø18
2.3×3.5×53
L252535
Ø25
3.0×6.0×35
L252545
Ø25
2.6×4.0×45
L252553
Ø25
2.6×4.0×53
L252565
Ø25
2.6×4.0×65
L302845
30o
Ø28
2.9×4.5×45
L302853
Ø28
2.9×4.5×53
L302863
Ø28
2.9×4.5×63
L302875
Ø28
2.9×4.5×75
L302883
Ø28
2.9×4.5×83
L3028100
Ø28
2.9×4.5×100
L303853
Ø38
3.1×5.0×53
L303863
Ø38
3.1×5.0×63
L303875
Ø38
3.1×5.0×75
L303883
Ø38
3.1×5.0×83
L3038100
Ø38
3.1×5.0×100
L305663
Ø56
3.1×5.6×63
L305675
Ø56
3.1×5.6×75
L305683
Ø56
3.1×5.6×83
L3056100
Ø56
3.1×5.6×100
Our Custom-made Services
From the most commonly used, to quantity-specific specifications requested by customers and special shapes, if you need a Tungsten Carbide Helial Inserts then we can help. Speak with our expert team today by email us(sales@
