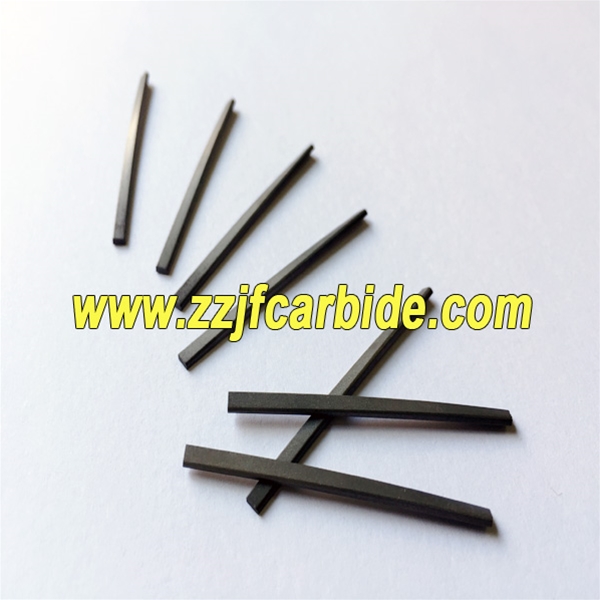

Right Hand & Left Hand Spiral Carbide Insert
Product DescriptionProduct AttributesBrand: JINGFENG
Place Of Origin: China
Processing Material: Aluminium, Steels, Cast Iron and other non-ferrous
Delivery Time: 3-15days according to quantity
Sample: Available
Company Type: Manufacturer
Grade: K05-K40,M10-M25, P10-P30
Customized Support: OEM & ODM
Direction: Right Hand or Left Hand
Milling Diameter: D7-D200mm
Length: 15-300mm
Usage: For brazed milling cutters or brazed end mills
Packaging & DeliverySelling Units : Piece/Pieces Package Type : Safe plastic box packing and Standard paper box Product DescriptionEstablished in 2004, ZHUZHOU JINGFENG Carbide Tools CO.,LTD is dedicated to R&D, producing and marketing high quality products while providing competitive pricing and fast turnaround on standard and custom-made tungsten carbide Helical Reamer Inserts.To this day, we continue to produce the variety of sizes and specifications, and have become a leader in this project, as well.
Brazed Tungsten Carbide Helical Inserts are produced by powder metallurgy that starts with thermal shaping process method to form a part. Ensuring more even structure, high overall density, fewer welded crack, good impact resistance and a long life.
This special type of brazed tungsten carbide Helical Inserts with different spiral angles are used in manufacturing finishing milling cutters. There are over a dozen different grades of Tungsten Carbide, enabling us to meet the specific application demands of our customers.Product Advantage
-We can control the fitting accuracy within 0.5mm.
-Standard sizes direct from stock, delivered fast.
-On demand: different helical angles and special lengths up to 300mm and diameter up to Ø200 mm
Product Standard
Item Code
βo Helical Angel
Mill Ød
Specification(MM)
L070838
7°
Ø8
1.0×2.3×38
L071345
Ø13
1.4×2.6×45
L071350
Ø13
1.4×2.6×50
L071355
Ø13
1.4×2.6×55
L071655
Ø16
1.4×2.6×55
L082063
8°
Ø20
1.8×3.4×63
L082065
Ø20
1.8×3.4×65
L082068
Ø20
1.8×3.4×68
L152828
15°
Ø28
1.8×3.4×28
L152865
Ø28
1.8×3.4×65
L152868
Ø28
1.8×3.4×68
Our specialists provide superior service including technical help like grade and specification selection.
If you need a Tungsten Carbide Helial Inserts then we can help. Please contact us today by email(sales@
zzjfcaride.com). - Previous：Brazed Hardmetal Helical Carbide Inserts
