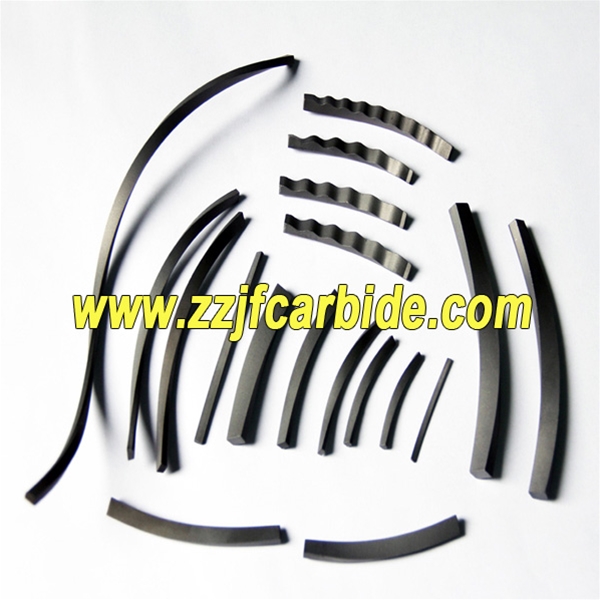

Brazed Hardmetal Helical Carbide Inserts
Product DescriptionProduct AttributesPlace Of Origin: China
Milling Diameter: D7-D200mm
Helical Angle: 0°-45°
Usage: For brazed milling cutters or brazed endmills
Certification: ISO9001:2015
Sample: Free Supply
Direction: Right Hand or Left Hand
Length: 15-300mm
Grade: K05-K40
Specification: Custom-made is available
Company Type: Manufacturer
Packaging & DeliverySelling Units : Piece/Pieces Product DescriptionZHUZHOU JINGFENG Carbide Tools CO.,LTD was incorporated in 2004. As a specialist for brazed tungsten carbide helical blades, our extensive technical experience and highly motivated personnel, supported by our creative focus to ensure the best possible production processes. So we are able to guarantee an excellent coupling with the steel cutter body.
The company has established a complete procedure system from design, production, inspection, sales and after-sales. In each step of the process our trained staff communicates with customers to make sure that our products are better understood and up to the customers satisfactory requirements.
Before dispatch along with 100% specific tests we check every single piece, in order to reduce brazing and subsequent sharpening times.
We were able to reduce our lead time while offering flexibility in batch sizes and helical angle customization, from the most commonly used, to quantity-specific specifications requested by customers and special shapes.
If you are looking for brazed helical blades at a reasonable price, you have come to the right place.
For further information, please contact us today(sales(at)zzjfcarbide.com).
Product Standard
Item Code βo Helical angel Mill Ød L(mm) b(mm) c(mm) L070838 7° Ø8 38 2.3 1.0 L071345 Ø13 45 2.6 1.4 L071350 Ø13 50 2.6 1.4 L071355 Ø13 55 2.6 1.4 L071655 Ø16 55 2.6 1.4 L082063 8° Ø20 63 3.4 1.8 L082065 Ø20 65 3.4 1.8 L082068 Ø20 68 3.4 1.8 L152828 15° Ø28 28 3.4 1.8 L152865 Ø28 65 3.4 1.8 L152868 Ø28 68 3.4 1.8 L251226 25o Ø12 26 3 1.8 L251432 Ø14 32 3.3 2.2 L251838 Ø18 38 3.5 2.3 L251845 Ø18 45 3.5 2.3 L251853 Ø18 53 3.5 2.3 L252535 Ø25 35 6 3 L252545 Ø25 45 4 2.6 L252553 Ø25 53 4 2.6 L252562 Ø25 62 4 2.6 L252565 Ø25 65 4 2.6 L302845 30o Ø28 45 4.5 2.9 L302853 Ø28 53 4.5 2.9 L302863 Ø28 63 4.5 2.9 L302875 Ø28 75 4.5 2.9 L302883 Ø28 83 4.5 2.9 L3028100 Ø28 100 4.5 2.9 L303853 Ø38 53 5 3.1 L303863 Ø38 63 5 3.1 L303875 Ø38 75 5 3.1 L303883 Ø38 83 5 3.1 L3038100 Ø38 100 5 3.1 L305663 Ø56 63 5.6 3.1 L305675 Ø56 75 5.6 3.1 L305683 Ø56 83 5.6 3.1 L3056100 Ø56 100 5.6 3.1 Copyright @ 2024 . All Rights Reserved RU YI BAO 备案号：粤ICP备88888888号 - About Us
