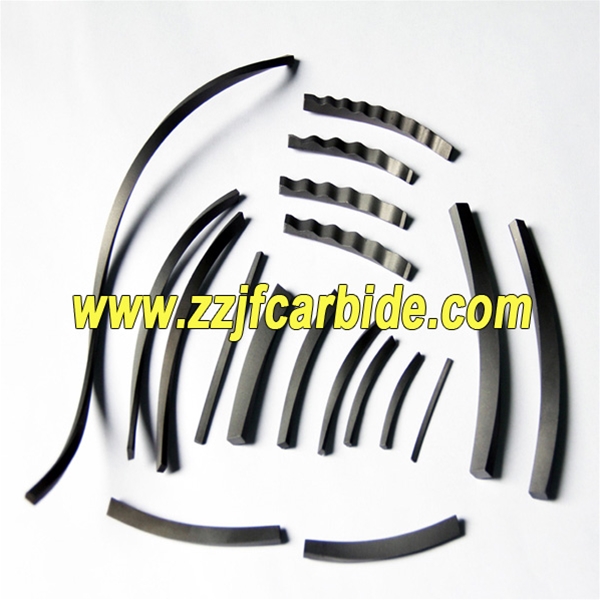

Tungsten Carbide Spiral Strips
Brazed Carbide Helical Sticks
Product DescriptionProduct AttributesPlace Of Origin: China
Quality Certification: ISO9001:2015
Milling Diameter: D7-D200mm
Length: 15-300mm
Spiral Angle: 0°-45°
Material: WC+Co/Ni
Direction: Right Hand or Left Hand
Hardness: HRA87.5-92.5
Usage: For brazed milling cutters
Specification: Custom-made is available
Company Type: Manufacturer
Packaging & DeliverySelling Units : Piece/Pieces Package Type : Safe plastic box packing and Standard paper box Picture Example :
Product DescriptionZhuzhou Jingfeng Carbide Tools Co.,Ltd supplies a full range of reliable carbide Helical Inserts for brazed milling cutter manufacturing. Our products are fully compatible with standard models of the milling cutter provided by most customers. We also offers custom servicing and advice too, in order to assure the best working and reliability of the specific needs.
Tungsten Carbide Helical Inserts are produced by powder metallurgy that starts with thermal shaping process method to form a part. Ensuring more even structure, high overall density, fewer welded crack, good impact resistance and a long life.
We can control the fitting accuracy within 0.5mm. The various choice of carbide grades enables to find the suitable material for each customers application.
Right & Left Hand Helix Insets / General Type
Item Code βo Helical angel Mill Ød L(mm) b(mm) c(mm) L152828 15° Ø28 28 3.4 1.8 L152865 Ø28 65 3.4 1.8 L152868 Ø28 68 3.4 1.8 L251226 25o Ø12 26 3 1.8 L251432 Ø14 32 3.3 2.2 L251838 Ø18 38 3.5 2.3 L251845 Ø18 45 3.5 2.3 L251853 Ø18 53 3.5 2.3 L252535 Ø25 35 6 3 L252545 Ø25 45 4 2.6 L252553 Ø25 53 4 2.6 L252562 Ø25 62 4 2.6 L252565 Ø25 65 4 2.6 L302845 30o Ø28 45 4.5 2.9 L302853 Ø28 53 4.5 2.9 L302863 Ø28 63 4.5 2.9 L302875 Ø28 75 4.5 2.9 L302883 Ø28 83 4.5 2.9 L3028100 Ø28 100 4.5 2.9 L303853 Ø38 53 5 3.1 L303863 Ø38 63 5 3.1 L303875 Ø38 75 5 3.1 L303883 Ø38 83 5 3.1 L3038100 Ø38 100 5 3.1 L305663 Ø56 63 5.6 3.1 L305675 Ø56 75 5.6 3.1 L305683 Ø56 83 5.6 3.1 L3056100 Ø56 100 5.6 3.1 Other sizes and helix angle are available on request, for more in-depth information on any particular area of our company, please contact us(sales@
